In Rocky View County your land-use district, not your acreage size, decides whether a 30x40 or 40x60 shop needs a development permit.
Rocky View County's Land Use Bylaw sorts acreages into districts, and each district sets the largest accessory building you can put up with a building permit alone. On Residential, Country Residential (R-CRD) land the permitted size is 90 m², about 969 sq ft, so a 30x40 shop at 1,200 sq ft already needs a development permit. R-CRD also caps the total footprint of all accessory buildings at 120 m², about 1,292 sq ft, so a 40x60 there means asking for a variance. On Residential, Rural (R-RUR) parcels the permitted size is 190 m², about 2,045 sq ft: a 30x40 fits, a 40x60 at 2,400 sq ft does not, and total accessory coverage is capped at 380 m² on parcels over 4.0 hectares and 285 m² below that. Both residential districts limit accessory buildings to 7.0 metres high, and the bylaw measures height as the average of all elevations, not the peak. If your acreage is in an Agricultural district (A-GEN or A-SML) the permitted size rises to 930 m² with no height cap. One rule catches steel buildings in particular: in any Residential district an accessory building must be similar to, and complement, the house in exterior material, colour and appearance.
Permitted accessory building size (larger is discretionary and needs a development permit): R-CRD 90 m² (968.75 sq ft); R-RUR 190 m² (2,045.14 sq ft); A-GEN and A-SML 930 m² (10,010.40 sq ft).
Source: Rocky View County Land Use Bylaw C-8000-2020, Office Consolidation
R-CRD: total accessory building footprint must not exceed 120.0 m² (1,291.67 sq ft); accessory building height 7.0 m. R-RUR: accessory height 7.0 m; maximum accessory parcel coverage 380 m² (4,090.29 sq ft) on parcels over 4.0 ha and 285 m² (3,067.71 sq ft) otherwise.
Source: Rocky View County Land Use Bylaw C-8000-2020, Office Consolidation

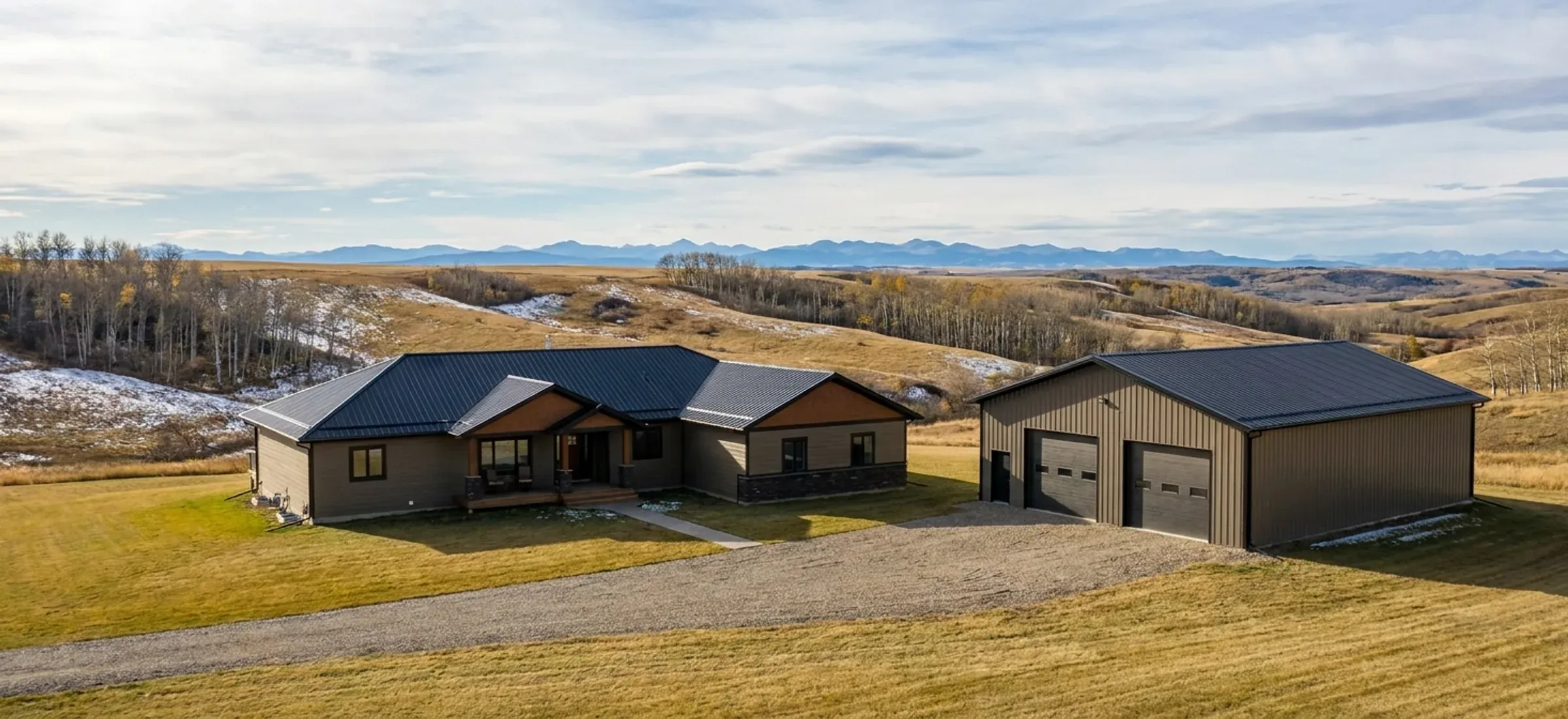

Section 173: an accessory building on a parcel in a Residential District shall be similar to, and complement, the principal building in exterior material, colour and appearance. The County's Accessory Building application package asks for a photograph of the existing principal building and elevation and colour renderings of the proposed building.
Source: Accessory Building(s) Information Sheet (Development Permit application package)
Table 2 (section 92): an accessory building in an Agricultural or Residential District needs no development permit when it complies with the district's parameters for a permitted use and needs no variance. A building permit is still required for any building over 10 m².
Source: Rocky View County Land Use Bylaw C-8000-2020, Office Consolidation
Most commercial, agricultural and large acreage buildings use rigid-frame "red iron" primary steel. Light-gauge cold-formed frames suit smaller garages and storage. This is how the two differ.
| Attribute | Rigid-frame red iron | Light-gauge cold-formed |
|---|---|---|
| Primary frame | Hot-rolled or built-up (welded plate) rigid frames, usually tapered, bolted at the haunch and ridge | Cold-formed C-sections, screwed or bolted, used as both frame and secondary members |
| Secondary framing | Cold-formed Z-purlins and girts spanning between frames | The same cold-formed members, at closer spacing |
| Clear span | Wide clear spans with no interior columns; modular columns optional for very wide buildings | Shorter clear spans; wider buildings need interior posts |
| Frame spacing (bays) | Wider bays, set by the manufacturer for the loads at your site | Closer frame spacing |
| Overhead crane | Frames and columns can be designed from the start to carry crane runway beams and brackets | Not a crane structure |
| Doors and openings | Large overhead and sliding doors framed between columns without losing the clear span | Door sizes limited by frame spacing |
| Typical use | Commercial, industrial, agricultural and large acreage shops | Garages, small shops and storage |
| Drawings for the permit | Stamped by an Alberta-registered P.Eng. retained by the manufacturer, for your site loads | Varies by supplier; confirm stamped drawings before you buy |
The building code's 1-in-50-year ground snow load for Calgary is 1.1 kPa, plus 0.1 kPa rain-on-snow. Rocky View County isn't listed in the code's climate table; Calgary is the nearest listed location, about 14 km away, and your permit authority sets the value for your exact site. The roof load your acreage shops is designed for starts there and goes up where snow drifts: against a taller wall, behind a parapet, or where a lean-to steps down from the main roof.
The 1-in-50-year design wind pressure for Calgary is 0.48 kPa, about 98 km/h sustained over an hour. Gusts run higher, which is why large doors, end walls and anchor bolts are designed for the site's exposure, not a catalogue default.
Southern Alberta sees some of Canada's most damaging hail. Ask for wall and roof panels carrying a UL 2218 Class 4 impact rating in the manufacturer's listing, and check the paint system's warranty terms for hail.
Source: National Building Code – 2023 Alberta Edition, Volume 1: Table C-2, Climatic Design Data for Selected Locations in Alberta, NBC(AE) 2023. Your stamped drawings use the values for your exact site.
Find your district before you pick a size: it is on the County's Land Use Map and on your land title search. Then check the setbacks, which on R-CRD and R-RUR parcels start at 45 metres from a County road and 60 metres from a highway, with side yards of 3 metres on smaller parcels. The County's application package asks for every existing accessory building to be counted, because the coverage cap is a total, not a per-building limit. For the match-the-house rule, choose wall and roof colours that relate to the house, and consider wainscot or trim details that echo it; the County asks for colour renderings with the application. Within 15 metres of a building under construction with a valid building permit you can place up to 1 metre of fill or excavate up to 2 metres without a separate grading permit, which usually covers a shop pad. Show the septic field and well on the site plan and keep the shop clear of both.
| Size (ft) | Floor area | Typical use | Framing |
|---|---|---|---|
| 30x40 | 1,200 sq ft | Two-bay garage shop, hobby shop, small equipment storage | red iron or light gauge |
| 40x60 | 2,400 sq ft | Acreage shop with RV or equipment bays, small contractor shop | red iron or light gauge |
| 60x100 | 6,000 sq ft | Contractor yard building, machine storage, small warehouse | red iron |
| 100x200+ | 20,000 sq ft | Warehouse, crane-served fabrication shop, riding arena | red iron |
Every size is a starting point. Width, length, eave height and frame spacing are set to your use and your site.
Rocky View County publishes its Land Use Bylaw with a Land Use Map, and every parcel has a district such as R-CRD, R-RUR, A-SML or A-GEN. Some parcels carry a letter suffix on the map, such as 'p' for a parcel-size figure or 'h' for a height figure, which changes the standard district rule. If a Direct Control district applies, its own bylaw governs instead.
Yes. The bylaw defines an accessory building as a detached building, with or without a permanent foundation, that is subordinate to the main use, and it names fabric-covered buildings, garages and sheds as typical examples. The County's application form lists quonsets and barns among the building types. Open-sided structures such as three-sided stock shelters under 300 sq ft are accessory structures instead.
You can apply. The Development Authority may allow a variance if it would not unduly interfere with neighbouring parcels, and it requires a written rationale from the applicant. The Accessory Building package has boxes for area, height and setback variances. Because neighbours receive notice and can appeal within 21 days, a design that matches the house and sits well back from lot lines makes the case easier.
Not as a plain accessory building. A business with visits or non-resident employees falls under the bylaw's Home-Based Business (Type II) rules, which allow use of an accessory building but are a discretionary use, needing a development permit, in districts such as R-RUR, A-GEN and A-SML; R-CRD does not list it. Parking one commercial vehicle outdoors is allowed without a permit on Residential parcels of 1.6 ha or more. The Accessory Building form asks whether commercial vehicles will be parked inside.
